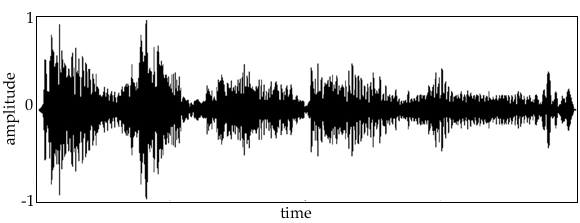

## Example: Keyword Detection   - Every second, the microphone will collect roughly 44,000 samples. Each sample is a measurement of the amplitude of the sound wave - How to detect "Alexa" , "OK, Google" from the raw audio?

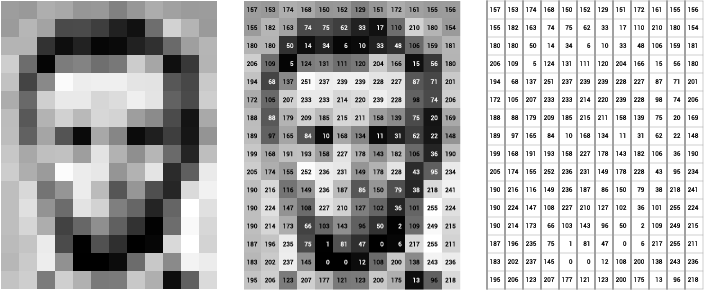

## Example: Face Detection   - Every image is a collection of numbers indicating the intensity of the color channel at a given pixel - How to detect the presence of a face in a picture?

## Machine Learning Approach  <ul> <li /> The goal of Machine Learning (ML) is to learn to solve a problem by extracting patterns from raw data <li class=fragment /> The performance of ML models depends heavily on the representation of the data <li class=fragment /> Neural Networks are particularly efficient at learning these representations </ul>

## History of Artificial Intelligence and Neural Networks  <div class=fragment> <p>Early AI shortcomings: </p> <ul> <li/> Symbol based processing lacks domain-specific knowledge <li/> Combinatorial explosion: solutions to small problems did not scale to exponentially large problems. <li/> Solving a problem in principle is very different than solving it practically </ul> </div>

## AI's Moonshot <img src=images/image.I6QZC0.png class="stretch"/>

Modern Artificial Intelligence and Machine Learning

A lot of progress in machine learning can be attributed to better hardware and more data

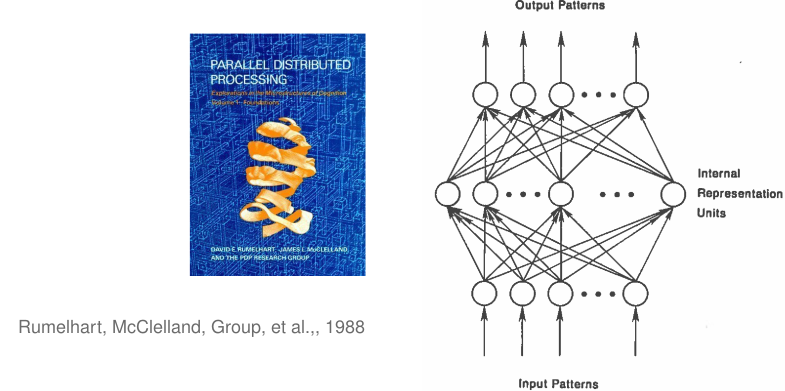

Connectionism and Neural Networks

• At the heart of deep learning, there is an artificial neural network
• Artificial neural networks are a subset of machine learning approaches using networks of simple (neuron-like) units.

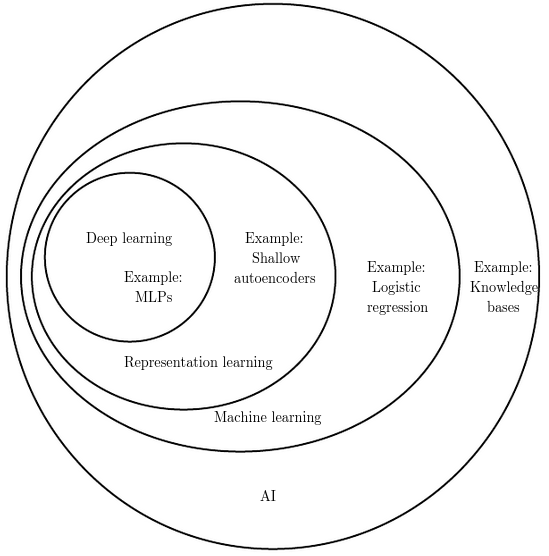

## Machine Learning / Artificial Intelligence <img src="images/venn_ml.png" class=stretch /> <blockquote>Deep learning is a kind of representation learning, which is in turn a kind of machine learning, which is used for many but not all approaches to AI" </blockquote> <p class='ref'>(Goodfellow et al. 2016)</p>

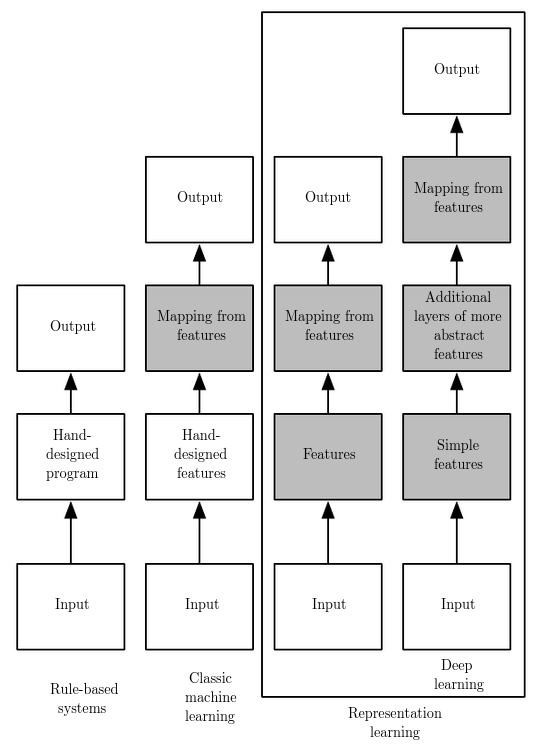

## How does deep learning differ from other AI systems? <img src=images/ml_flowchart.png class="stretch"/> <p class='ref'>(Goodfellow et al. 2016)</p>

## Learning from Examples - Machine learning typically uses (large) ***datasets*** to learn to - Recognize patterns (Classification) - Generate patterns (Generation) - Take Actions (Reinforcement Learning)

## Visual Recognition - Visual Recognition (Image Classification) is the most common task performed by neural networks  - Neural networks are trained using a dataset consisting of pairs of images and labels

## Example Dataset: MNIST and CIFAR <div class="row"> <div class="column"> <p style="text-align:center" >MNIST</p> <img src=images/mnist.png /> </div> <div class="column"> <p style="text-align:center" >CIFAR10</p> <img src=images/CIFAR-10.png /> </div> </div> - MNIST/CIFAR10 are considered as the "Hello, World" example of deep learning

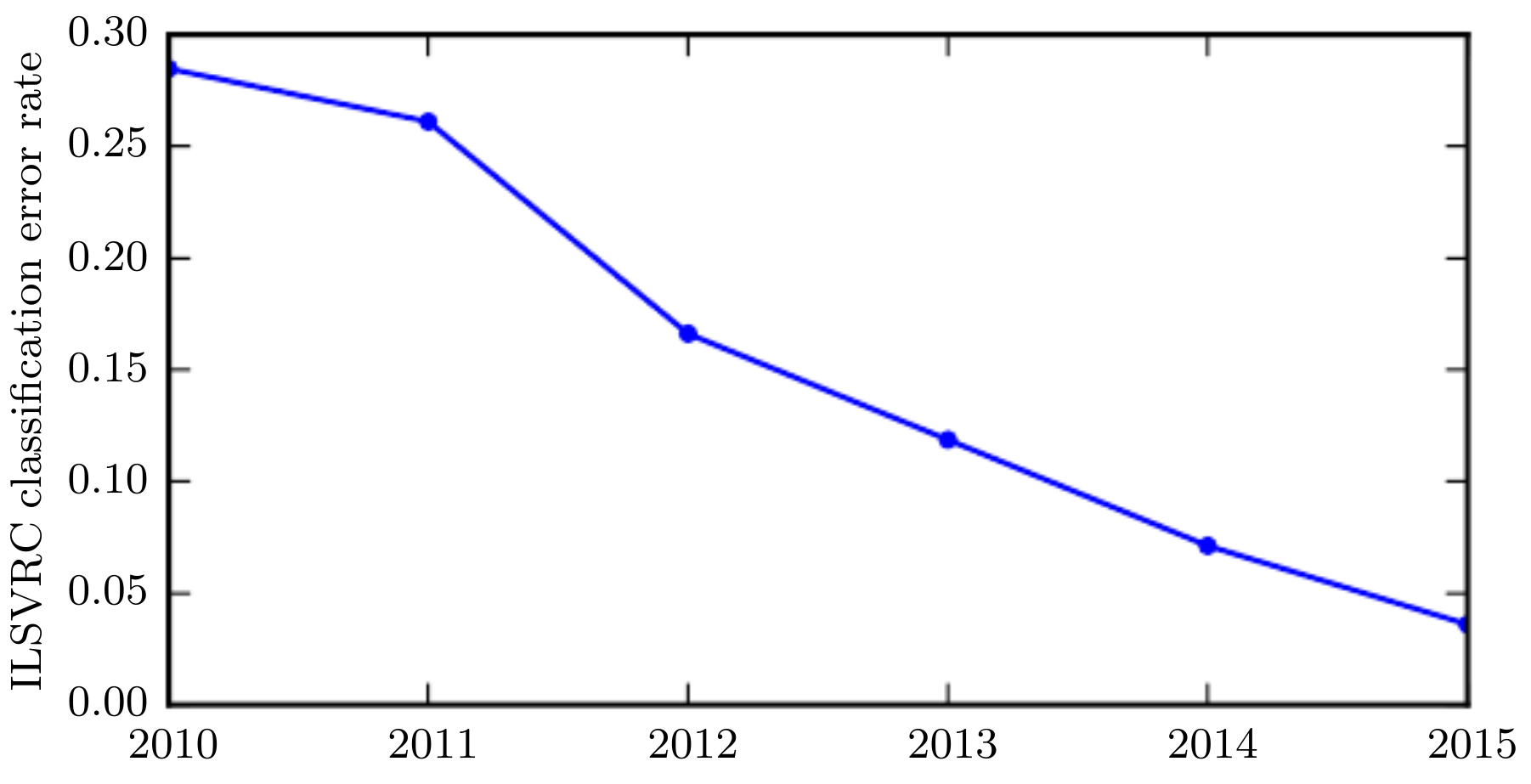

## Example Dataset: ImageNet  - ImageNet: 1M images, 1000 classes, 469x387 pixels <img src=images/ilsvrc.png class=small /> [](http://www.image-net.org/)

## Example Dataset: CelebA  - CelebA: large-scale face attributes dataset with more than 200K celebrity images, each with 40 attribute annotations.

## Beyond Image Classification Machine Learning and neural networks can be applied to a wide variety of problems, such as: - Image Segmentation and Object Detection - Text or Audio Classification - Regression - Translation - Anomaly Detection - Generation (Density Estimation)

## Other (Non-Visual) Datasets: - Speech Commands: 65,000 one-second long utterances of 30 short words, such as "Yes", "No", "Right", "Stop" - Penn Tree Bank (PTB) dataset: A text corpus that is parsed and annotated for natural language processing research <!-- .element: class="fragment" --> - SMS Spam Collection Dataset: 5574 messages, tagged according being ham (legitimate) or spam <!-- .element: class="fragment" -->

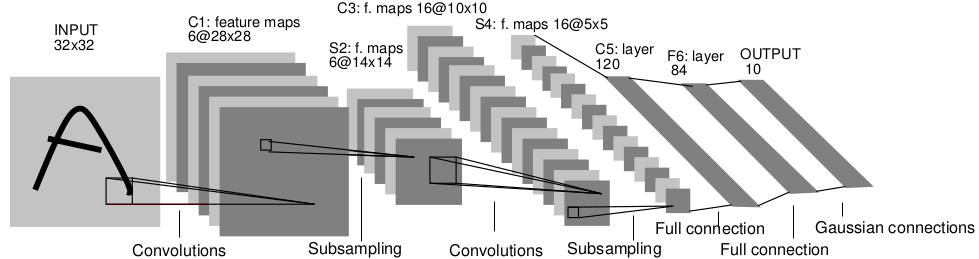

## Convolutional Neural Networks: Image Classification <img src="images/image_classification_imagenet.png" class="small"/> <img src="images/lenet.png" class=stretch />

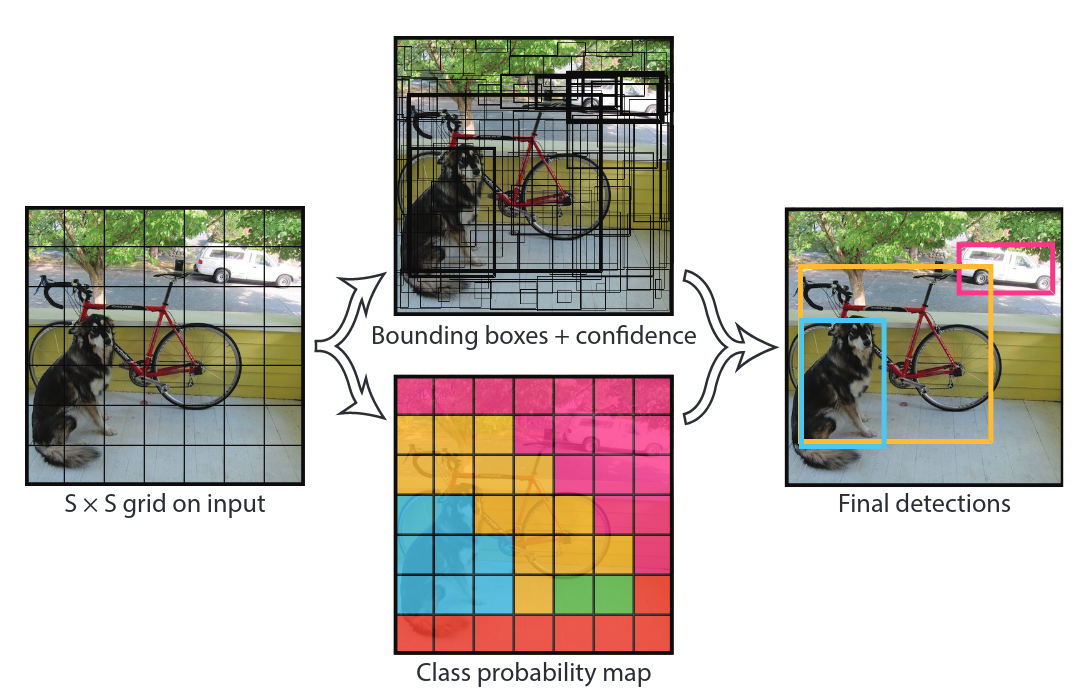

## YOLO: Object Detection <img src="images/yolo.png" class="stretch"/>

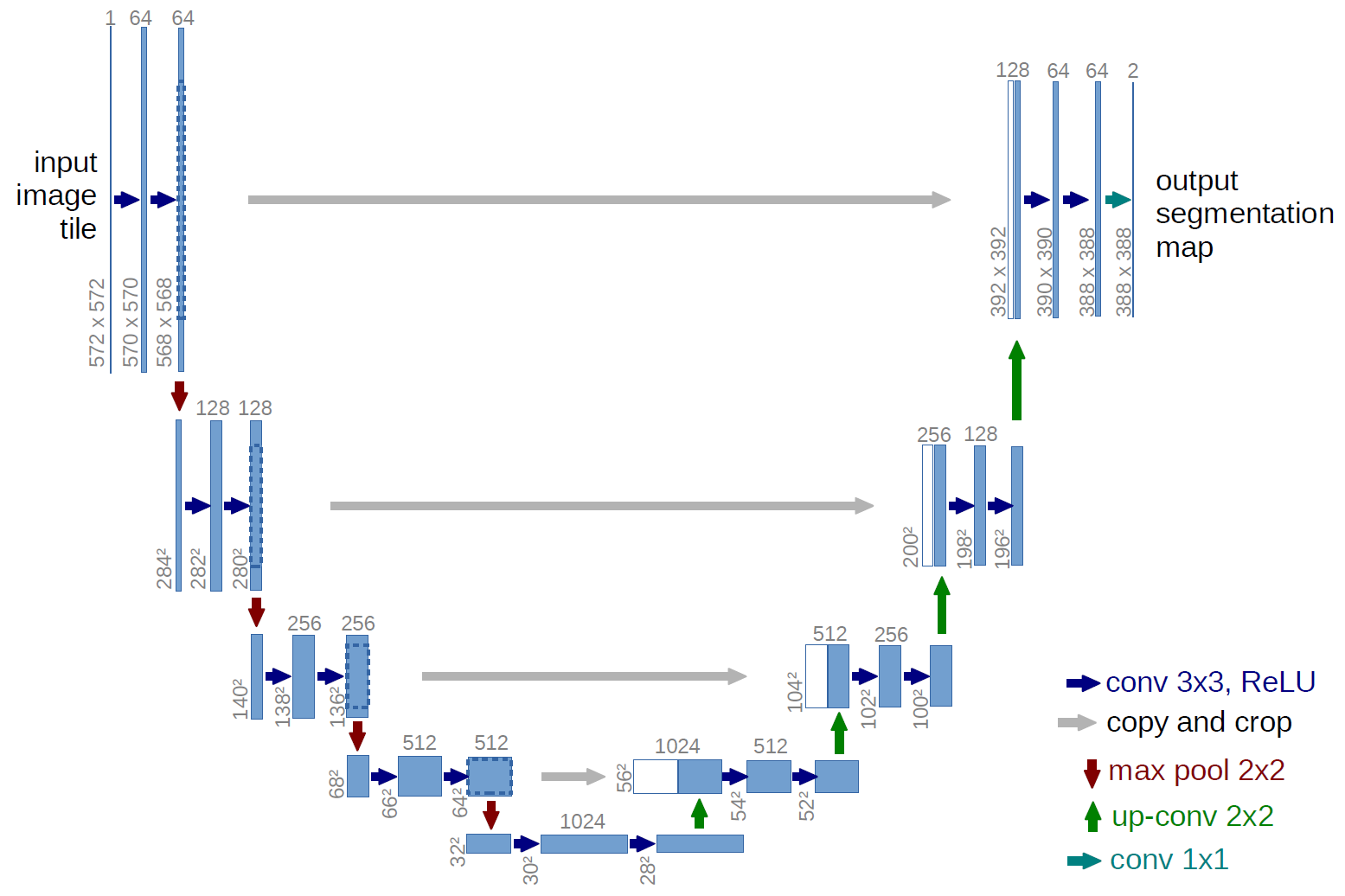

## U-Nets: Image Segmentation <img src="images/u-net-segmentation.png" class="small"/> <img src="images/u-net-architecture.png" class="stretch" />

## Neural Style Transfer <img src=images/art_style_transfer.png class=stretch />

## Neural Style Transfer: Deep Empathy <img src=images/deep_empathy_style_transfer.png class="stretch" />

## Image Generation Using Generative Adversarial Networks (GAN) <img src=images/image_generation_gan.png class=stretch />

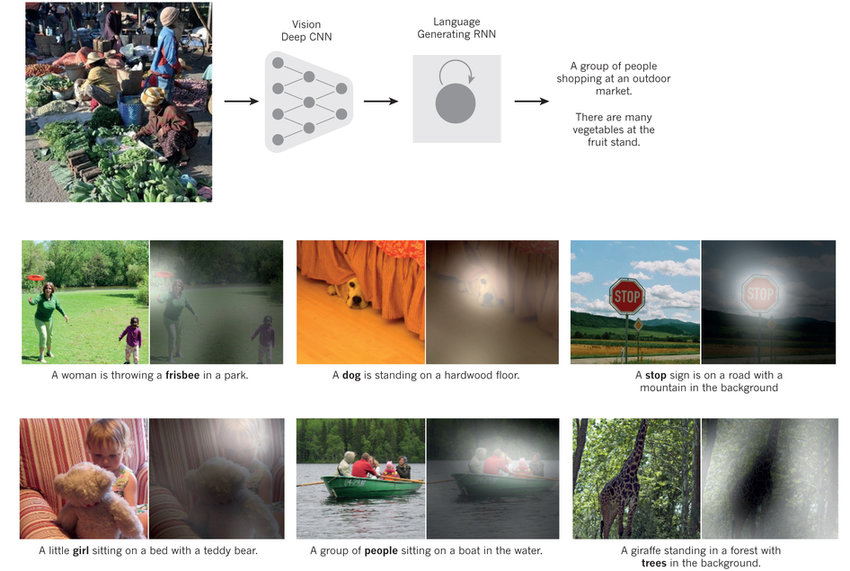

## Visual Attention: Captioning <img src=images/captioning.png class=stretch />

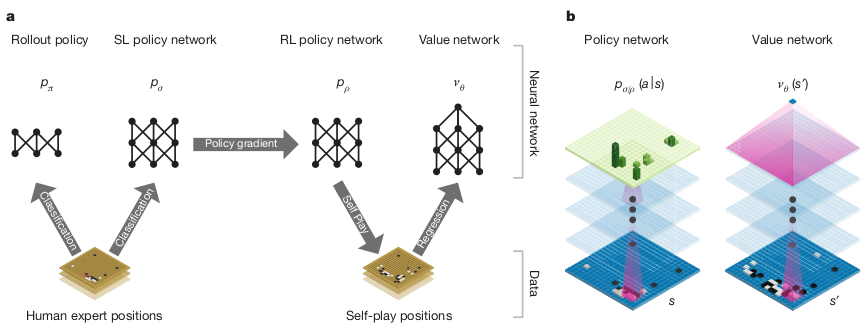

## Deep Reinforcement Learning: Game of Go <img src=images/game_playing.png class=stretch /> <p class=ref>Silver, et al. 2016</p>

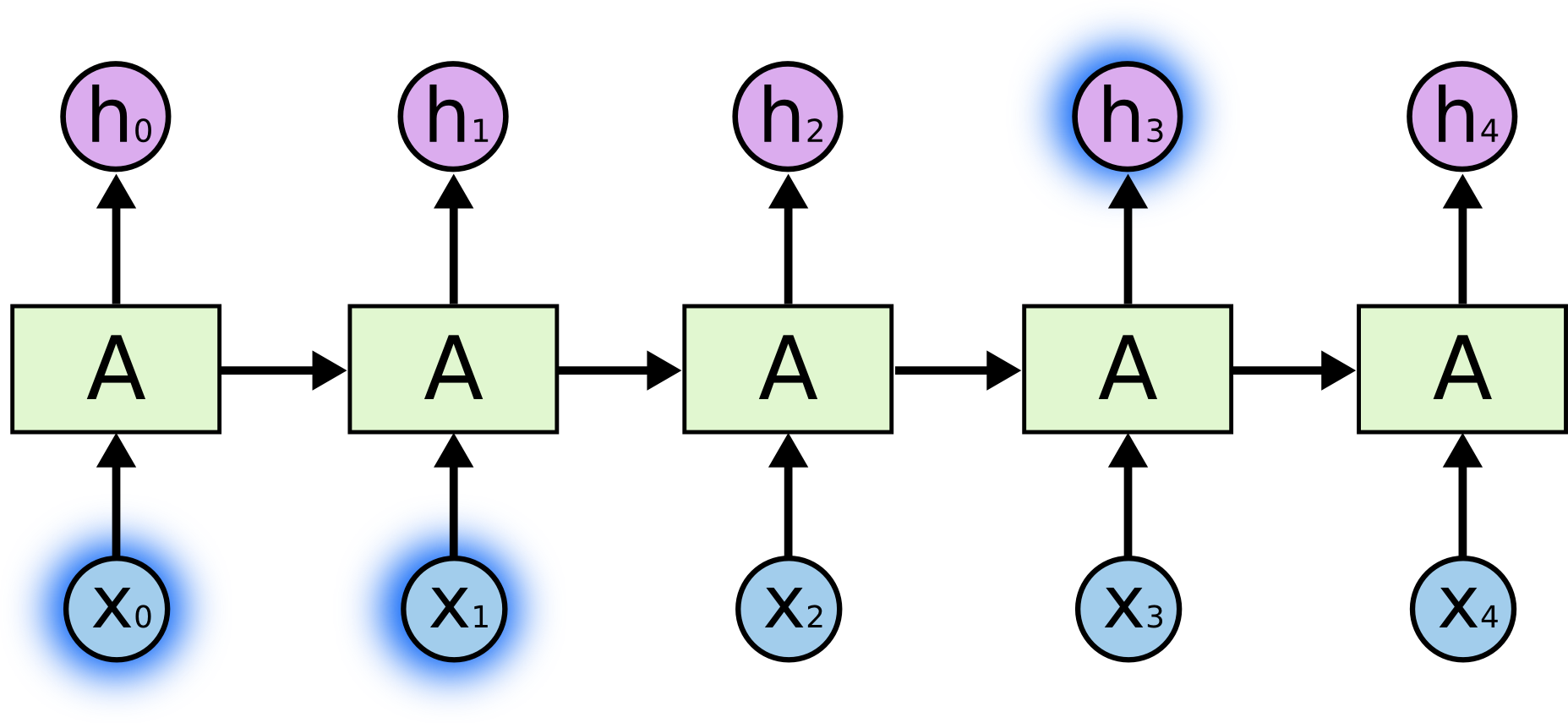

## Sequence Prediction - Data can have a temporal structure - Neural networks can be applied to learn and predict sequences - Recurrent Neural Networks are one such example <img src=images/sequence_prediction.png /> <p class=ref>C. Olah, 2015</p>

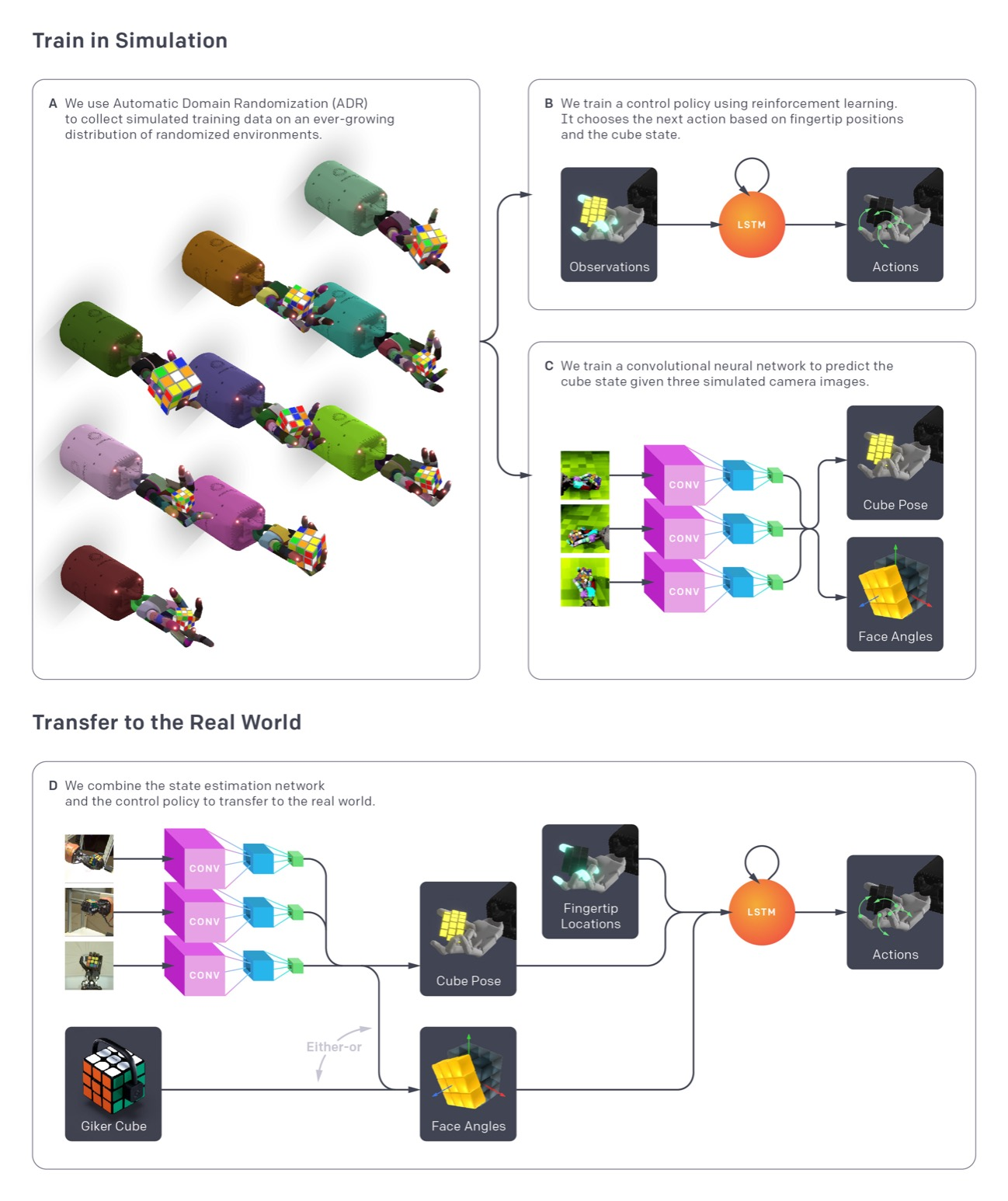

## Robot Control: Solving Rubik's Cube with a Robot Hand <div class=row> <div class=column> <img src="images/openai_rubiks_arch.png" style="height:600px;max-height:600px" /> </div> <div class=column> <iframe src="https://www.youtube.com/embed/kVmp0uGtShk" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen style='autoplay; max-height:500px;height:300px;width:100%;translate: scale(.1)'></iframe> <p class=ref>OpenAI, 2019</p> </div> </div>

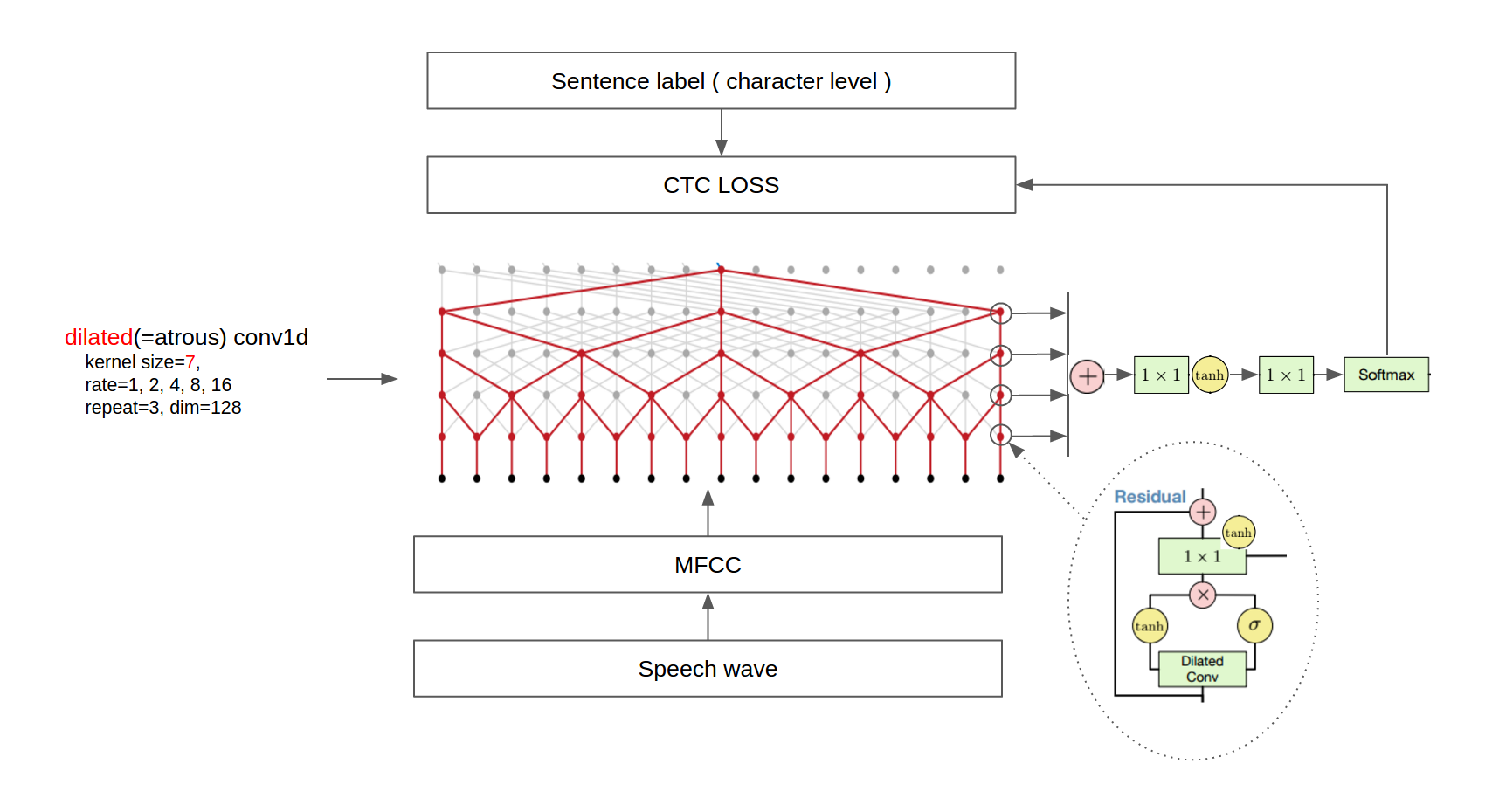

## WaveNets: Voice and Music Generation <img src=images/wavenet.png class=stretch /> - Parametric Text-To-Speech <audio controls="" src="https://storage.googleapis.com/deepmind-media/research/WaveNet/US%20English/parametric-1.wav"></audio> - WaveNet <audio controls="" src="https://storage.googleapis.com/deepmind-media/research/WaveNet/US%20English/wavenet-1.wav"></audio> <p class=ref>Van den Oord et al. 2016</p>

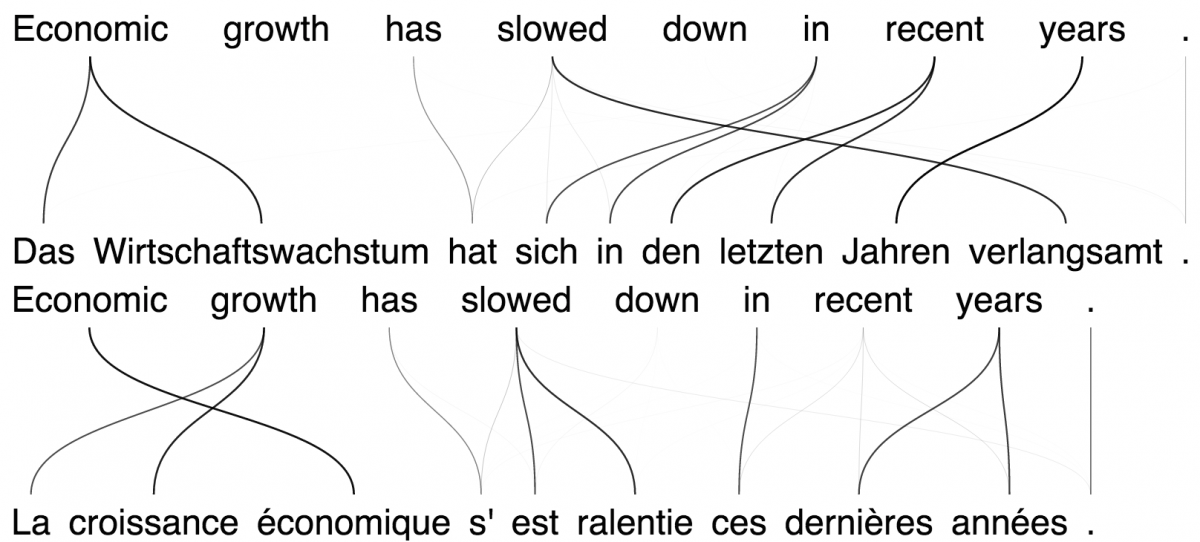

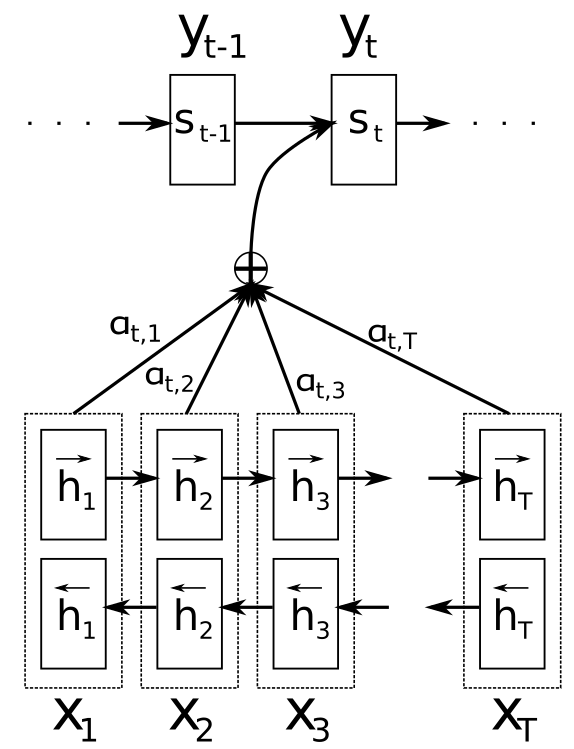

## Attention Networks: Machine Translation <img src=images/translation.png /> <img src="images/attention_bahdenau.png" class=stretch /> <p class=ref>Bahdenau, et al. 2015</p>

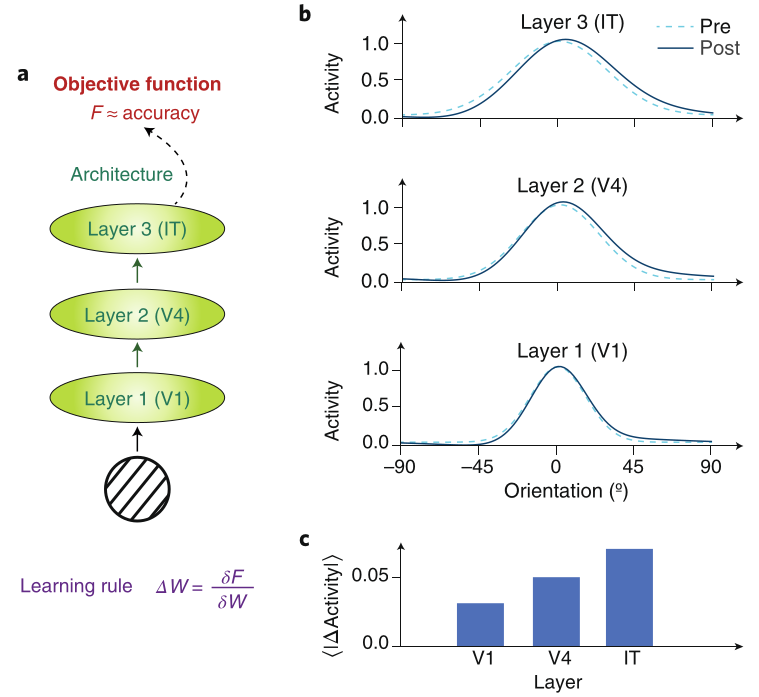

## ML/NN as Models for Understanding the Brain <img src="images/comparing_ann_and_brain.png" class=stretch /> <p class=ref>Blake, et al. 2019</p> - ML/NN attempts to solve tasks that are similar to that of animals. - Researchers use ML/NN to make hypotheses in the brain.

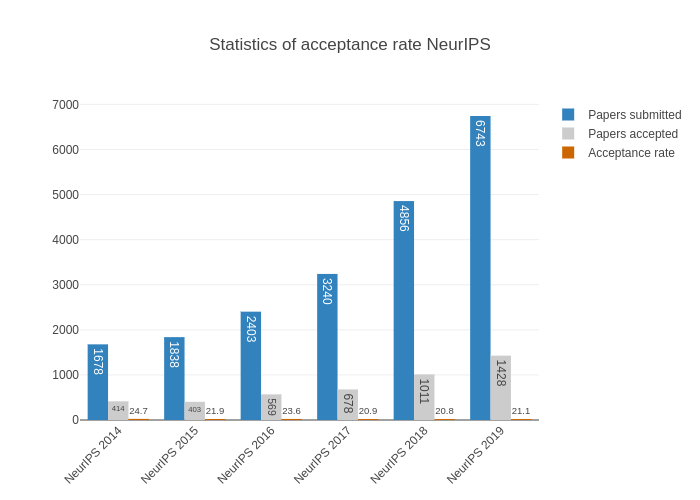

## The Explosion of Deep Learning - Deep Learning has become the de facto solution for any representation learning problem - Neural Information Processing Systems (NeurIPS) is the most prestigious conference in ML/AI - 13'000 Participant in 2019 - In 2018, the main conference sold out after 12 minutes <div class="row"> <div class="column"> <img src=images/neurips_stats.png /> </div> <div class="column"> <img src=images/neurips2019_photo.JPG /> </div> </div>

## Books <ul> <li /> Machine Learning <ul> <li/> Ian Goodfellow, Yoshua Bengio, and Aaron Courville. Deep learning. MIT press, 2016. <li/> C.M. Bishop. Pattern recognition and machine learning. Springer-Verlag New York, Inc. Secaucus, NJ, USA, 2006. </ul> <li class=fragment /> Biologically-Inspired Neural Networks <ul> <li/> Wulfram Gerstner, Werner M Kistler, Richard Naud, and Liam Paninski. Neuronal dynamics: From single neurons to networks and models of cognition. Cambridge University Press, 4. <li/> E. O. Neftci, H. Mostafa, and F. Zenke. “Surrogate Gradient Learning in Spiking Neural Networks: Bringing the Power of Gradient-Based Optimization to Spiking Neural Networks”. IEEE Signal Processing Magazine 36.6 (Nov. 2019), pp. 51–63. </ul>

## Course Overview (Weeks 1-3) - Historical perspective and Course logistics (Today) - Pattern Recognition Basics (1 Week) <!-- .element: class="fragment" --> - Linear Regression, Classification (k-Nearest Neighbor, Perceptrons, Multilayer Perceptrons) - Machine Learning and Deep Learning (2 Weeks) <!-- .element: class="fragment" --> - Software and computer setup - Deep Neural Networks - Loss functions - Optimization, Gradient Backpropagation

## Course Overview (Weeks 5-10) - Applications (4 weeks) - Visual Recognition: ConvNets - Pattern Generation: Autoencoders, Variational Autoencoders and Generative Adversarial Networks - Sequence Learning: Recurrent Neural Networks, LSTM, WaveNet - Natural Language Processing: Embeddings, Transformer Networks - From Artificial Neural Networks to Biological Neural Nets: (1 week) <!-- .element: class="fragment" --> - Spiking Neural Networks - Surrogate Gradient Learning - Final Projects Presentation (Last week) <!-- .element: class="fragment" -->

## Software and Assignments This is a hands-on class comprising programming assignments. All programming will be browser-based (no installation necessary): - Programming Language: Python 3 [](https://scipy-lectures.org/intro/) - Expected basic scientific programming skills in Python, and familiarity with the concepts in sections 1.1 through 1.4 in the [scipy lecture notes](http://www.scipy-lectures.org/intro/index.html). - Programming Environment: Jupyter + Google Colaboratory [](https://colab.research.google.com/notebooks/welcome.ipynb) - Deep Learning Environment: PyTorch [](http://pytorch.org)

## Final Project - Topic in ML/NN: - Apply a neural network to a new dataset, or - Modify an algorithm on an existing dataset - Week 10: 10+5 min presentation - Finals Week: Project report, using NeurIPS conference paper template https://nips.cc/Conferences/2015/PaperInformation/StyleFiles - Discuss topic with instructor before week 6 - Groups of two OK, but delineate contributions

## Final Project: Example Projects - Visual / Sequence Recognition - Terrain Classification from Videos - Agent Localization using Video - Computational Neuroscience - Representation Similarity Analysis with Binary Neural Networks - Classification/Regression on neuroimaging data - Artifact detection using EEG - Representation Similarity Analysis using Convnets and behavioral and neuroimaging data <p class="pl">If possible, choose a topic that relates to your expertise and research</p>
